• Griffin Armament Revolution 9 (Mod 3)

The Revolution 9 and 45 silencers were first to market with the modular length feature concept. The removable booster extension allows the user to configure the length of the suppressor to fit their needs. The silencer is user serviceable ensuring long, high performance service life. The front caps can be interchanged for a smaller 22 caliber front cap, available separately. 17-4 stainless heat treated baffles, with anti-rotation RTZ™ (Return To Zero) Geometry features, ensure maximum strength and sound performance. The booster assembly includes a piston for a turnkey suppressor system out of the box. Included take down tools allow for an easy and satisfying end user maintenance experience. Additional pistons, fixed barrel spacers, an integral 3 lug adapter, and fixed direct thread mounts are available to support the Revolution in any configuration the end user could desire. High quality, industry leading performance, strength, unparalleled feature functionality, build quality, and price make the Revolution a clear winner in the modular class of silencers.

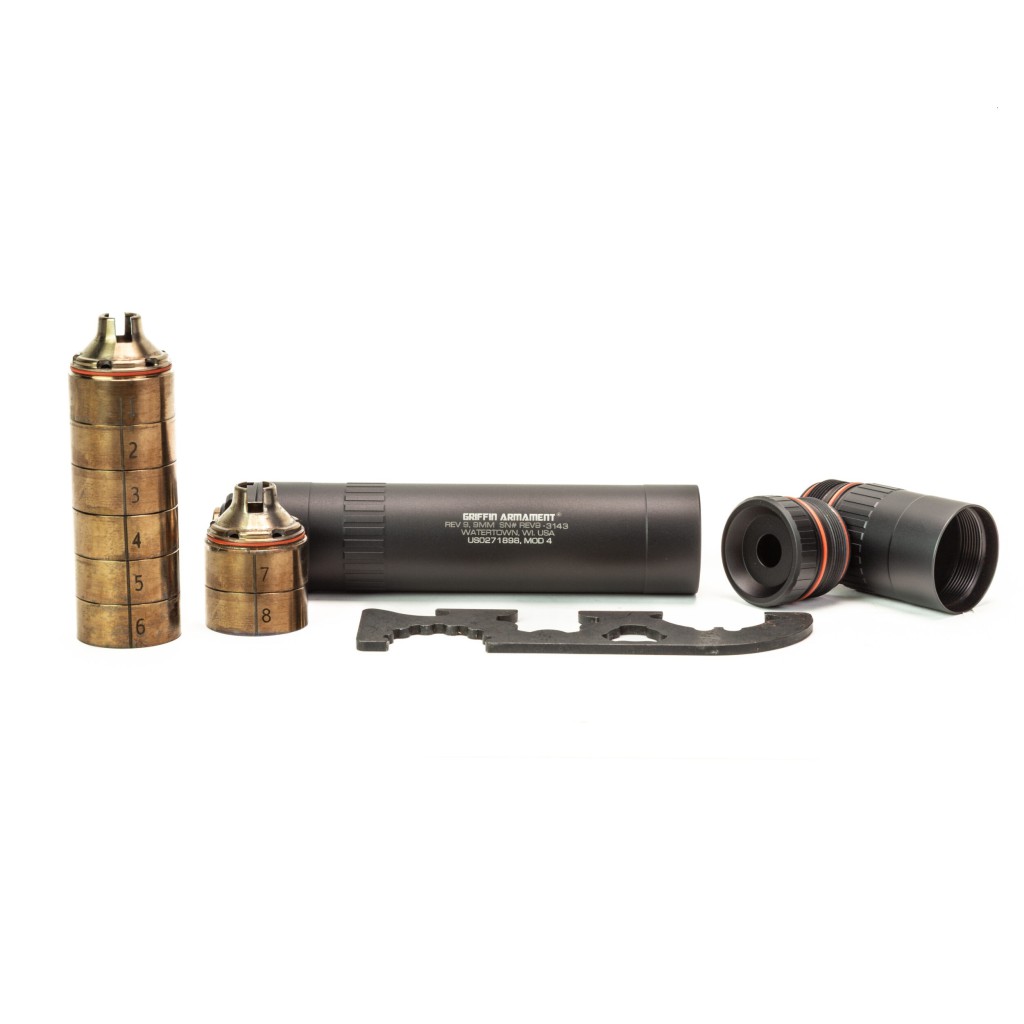

The Revo 9 can also be configured into a short (K) configuration by removing the stainless black oxide external booster housing extension and collapsing the booster housing or 3 lug assembly into the silencer tube. This configuration is best used wet. By adding 5cc's of rem oil, wire pulling gel, or some other ablative medium sound suppression can be dampened extremely well in the short configuration.


The Revo 9 is shipped in it's full size configuration with an included 1/2x28 booster piston to run on your 9mm pistol barrels. However the user can swap out the included piston with other pistons for use on metric threaded barrels. Additionally our integral 3 lug 9mm QD assembly can be interfaced if desired to run on 9mm MP5's, AR carbines, or any 9mm wearing a standard 3 lug coupler.


The Return to Zero baffles key together so that every time you disassemble the silencer and put it back together you can achieve the same baffle orientation so that your point of impact shift will remain the same negating the need to re-zero your carbine or pistol after servicing. (applicable to full size configuration)


Additionally the MOD 3 can be fitted with the Taper Mount Minimalist Blast Shield for use with Taper Mount Muzzle devices. Mod 3 REV 9 Serial starts at REV9-0885




Caliber Ratings

Rev9 9mm full auto rated, Rev45 45acp full auto rated


Rev9 & 45, ALL configurations below – 5 TO 7 ROUNDS then allow to cool to ambient temperature. - These ratings are intended for sporting (hunting) use only.


Revolution Rifle Rating

Full Size w/ K-Spacer & Mini Blast Shield

  • 300 BLK Super 9”
  • 5.56mm 11.5”
  • 7.62x39 14.5”


K Configuration w/ K-Spacer & Mini Blast Shield

  • 300BLK Sub/Super 16”
  • 5.56mm 16” 7.62x39 16”


3 Lug K and full size

(7.62x39 for CZ527 only)

  • 300 BLK 8” Sub
  • 300 BLK 16” Super
  • 5.56mm 16”


INCLUDES:

  • 1/2x28 PISTON
  • Griffin Armorers Wrench
  • Griffin Hex Tool


** Wrench and Tool are only included with the 2nd Generation of Revolution Silencers.


Diameter: 1.375”

Overall Length: 7.6”

Weight: 11.2 ounces 9.7oz (short)

Materials: 17-4PH Stainless Steel and 7075 T6 Aluminum

Attachment: booster piston, Griffin 3 Lug assembly, direct thread mounts

DB Attenuation: 34DB 31DB (short K config)

Finish: Mil-Spec Type III Hardcoat Anodizing, Black Oxide, H900 heat treat

Full Auto Rated: Yes


Features

  • 17-4PH H900 heat treated baffles
  • Return to Zero baffle Tech
  • Configurable size
  • Piston, 3 lug mount interfaces, direct thread interfaces
  • Griffin Armorers Wrench Included
  • Hex Tool Included
  • Fully shielded silencer tube for ease of cleaning
  • silencer pouch Included
  • 1/2x28 booster piston Included
  • Lifetime Warranty



FFL
FFL Address Required Yes
Shipping Class
Suppressor Yes

Write a review

Please login or register to review

Griffin Armament Revolution 9 (Mod 3)

  • Brand: Griffin Armament
  • Product Code: Revolution 9
  • Rating:
  • Availability: In Stock
  • $716.00
